GTA: Weapon Wheel Panel Organizer

🎨 Materials

These are the filaments and non-printable hardware used to complete this print:

Filaments:

Hardware:

* Contains affiliate links

🛠️ Installation Guide

Get seamless printing on any standard machine with these pre-tested STL files.

Overview

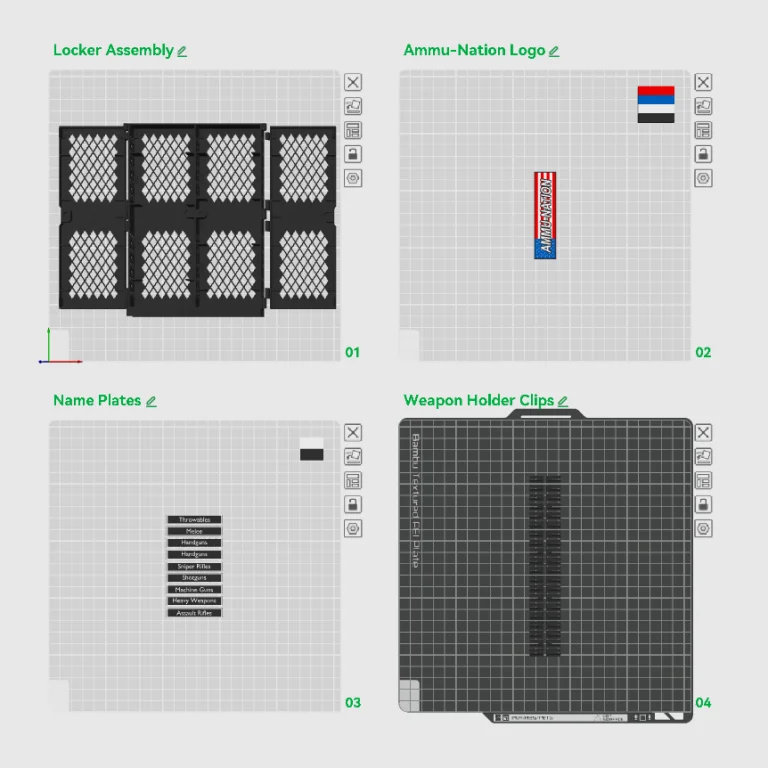

Keep the default orientation for a support-free print (only the display base and ESP8266 case will require supports), or use the 3MF file to easily customize your layout and filament Color. (STLs included for legacy slicers). The 3MF file is organized by print assembly order for simple guided installation.

Organizer Assembly

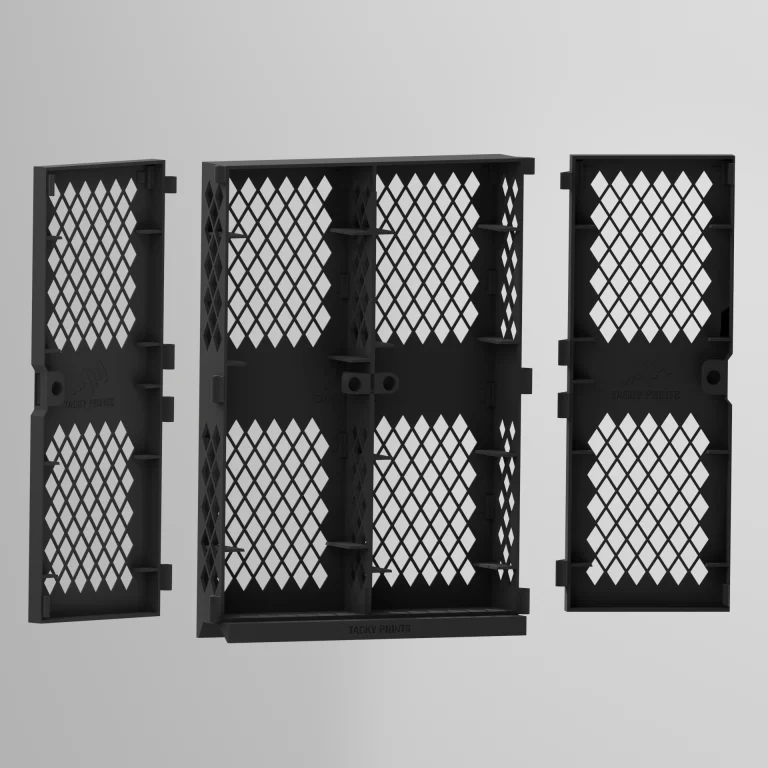

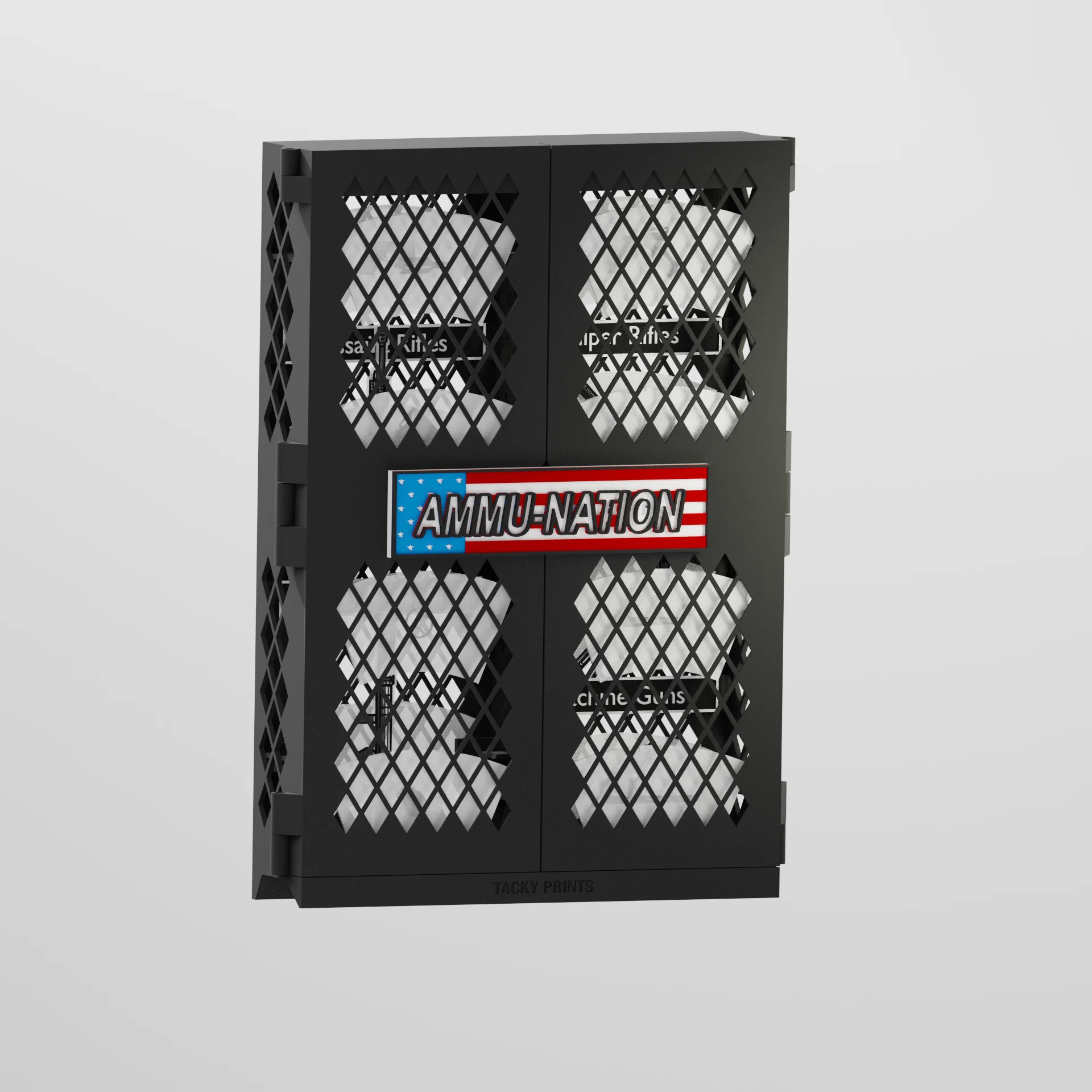

This Storage Organizer prints in 3 complete parts: The Housing and the 2 doors. The doors need to go on the right side during the assembly. Use the embedded Tacky Prints logo on the inside of the doors to ensure they are properly oriented in the right direction.

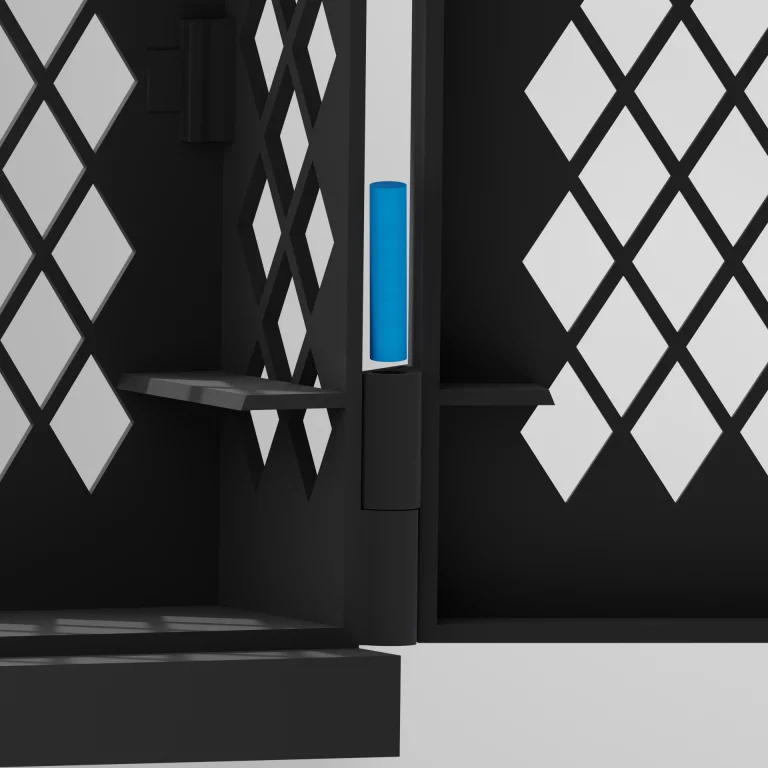

Filament Hinges

1. Identify the left and right doors. Look at the inside of the doors for the Tacky logo to ensure they are oriented right-side up.
2. Align the door hinges with the main Storage Housing.
3. Slide a short piece of 1.75mm filament down through the print-in-place hinge holes to lock the doors to the body.
4. Snip off any excess filament flush with the top and bottom of the hinge using flush cutters.

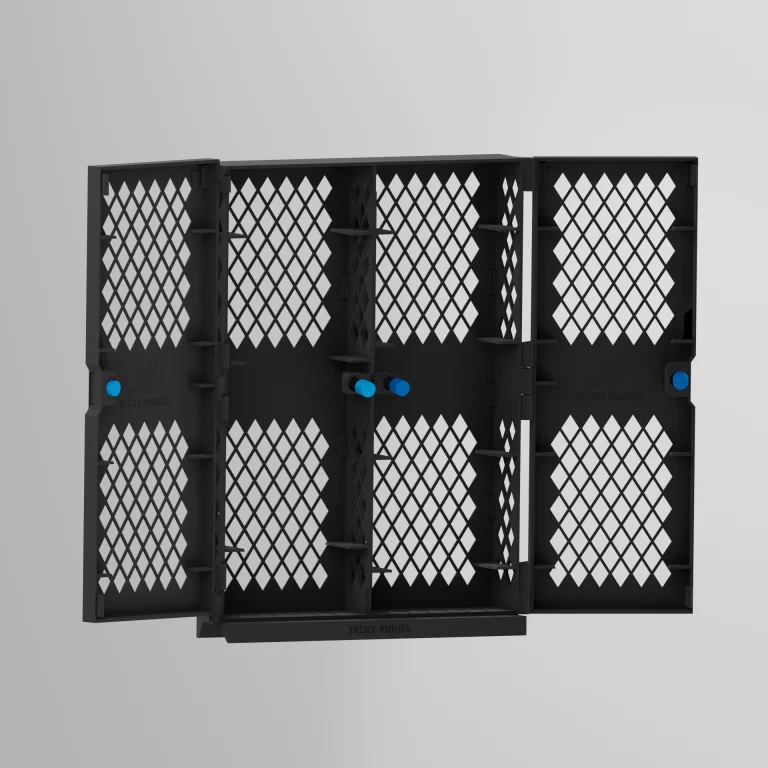

Magnet Inserts

 **Pro Tip:** Stack your magnets together in a line and mark one side with a Sharpie before gluing. This guarantees you never glue a magnet in backwards!

1. Apply a tiny drop of super glue into the magnet pockets on the housing. Insert the magnets so the marked side faces outward.
2. With the doors open, glue the door magnets in place with the marked side facing inward (towards the housing).
3. Allow the glue to dry completely before closing the doors to ensure the magnets attract and lock the doors flush without ripping out of their pockets.

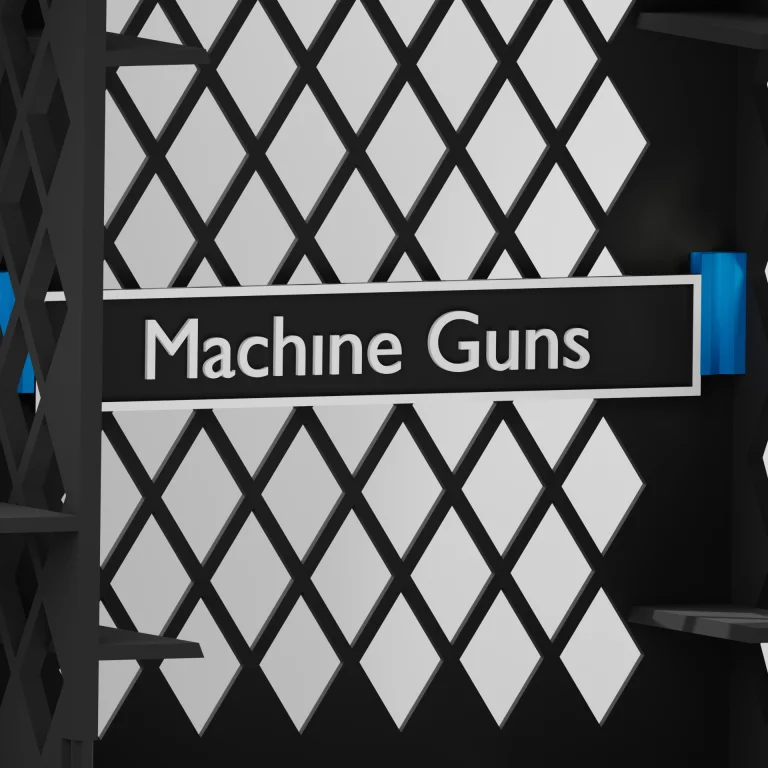

Name Plate Inserts

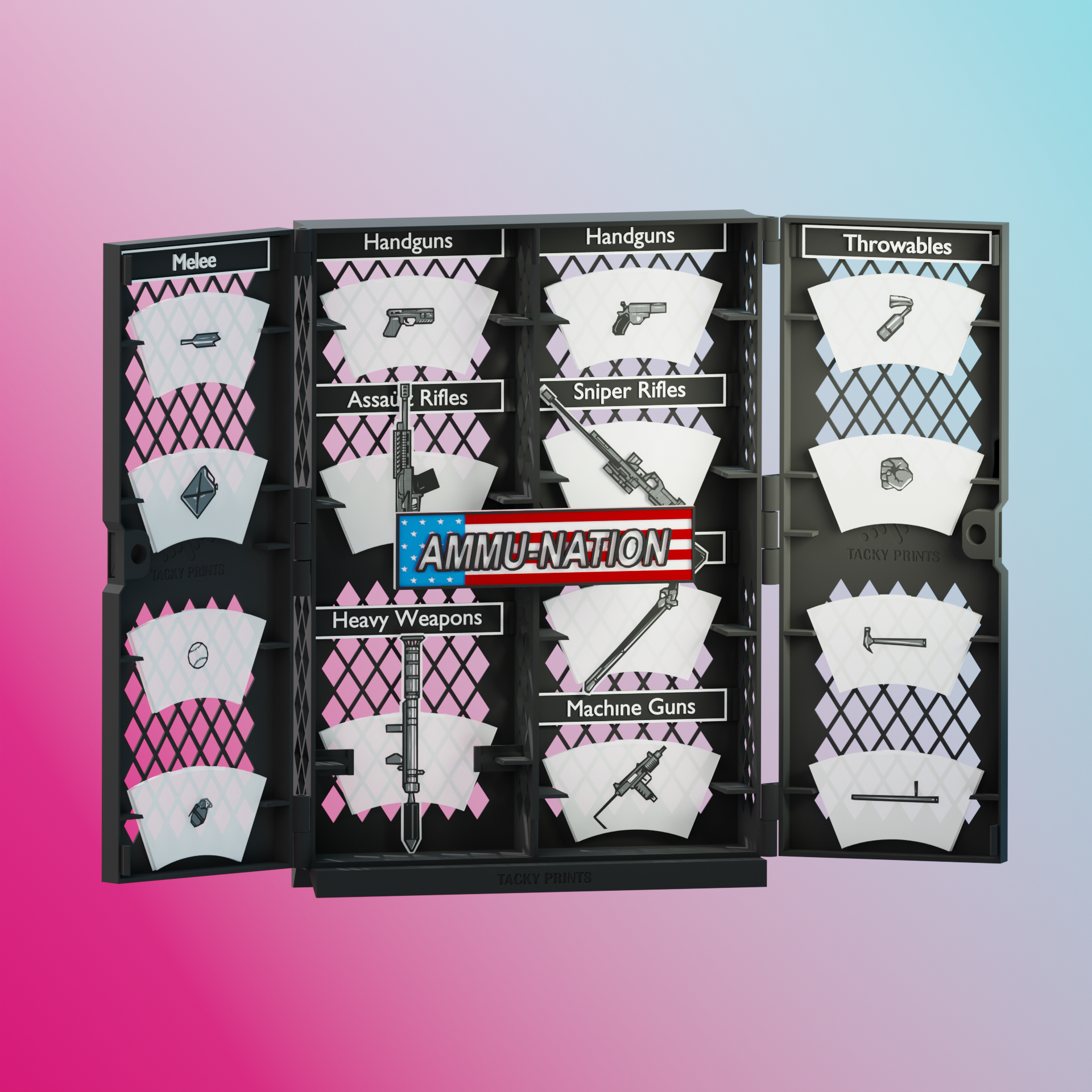

No glue is required! Simply slide the name plates upward into their designated slots. *Optional: You can add a drop of glue if you want them permanently locked in.* Refer to the included “Open Storage Diagram” to place the names in their correct positions.

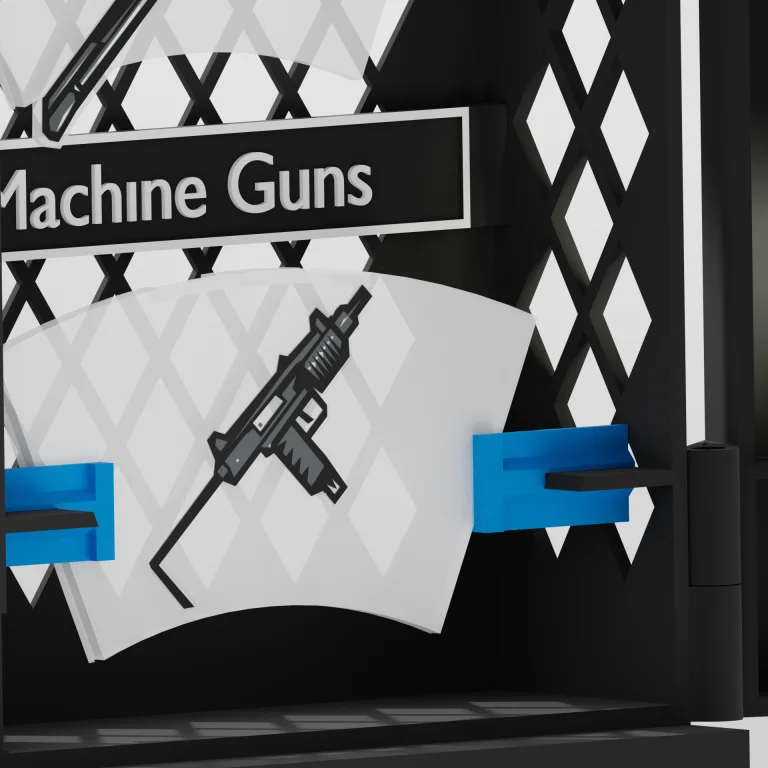

Insert Holder Clips

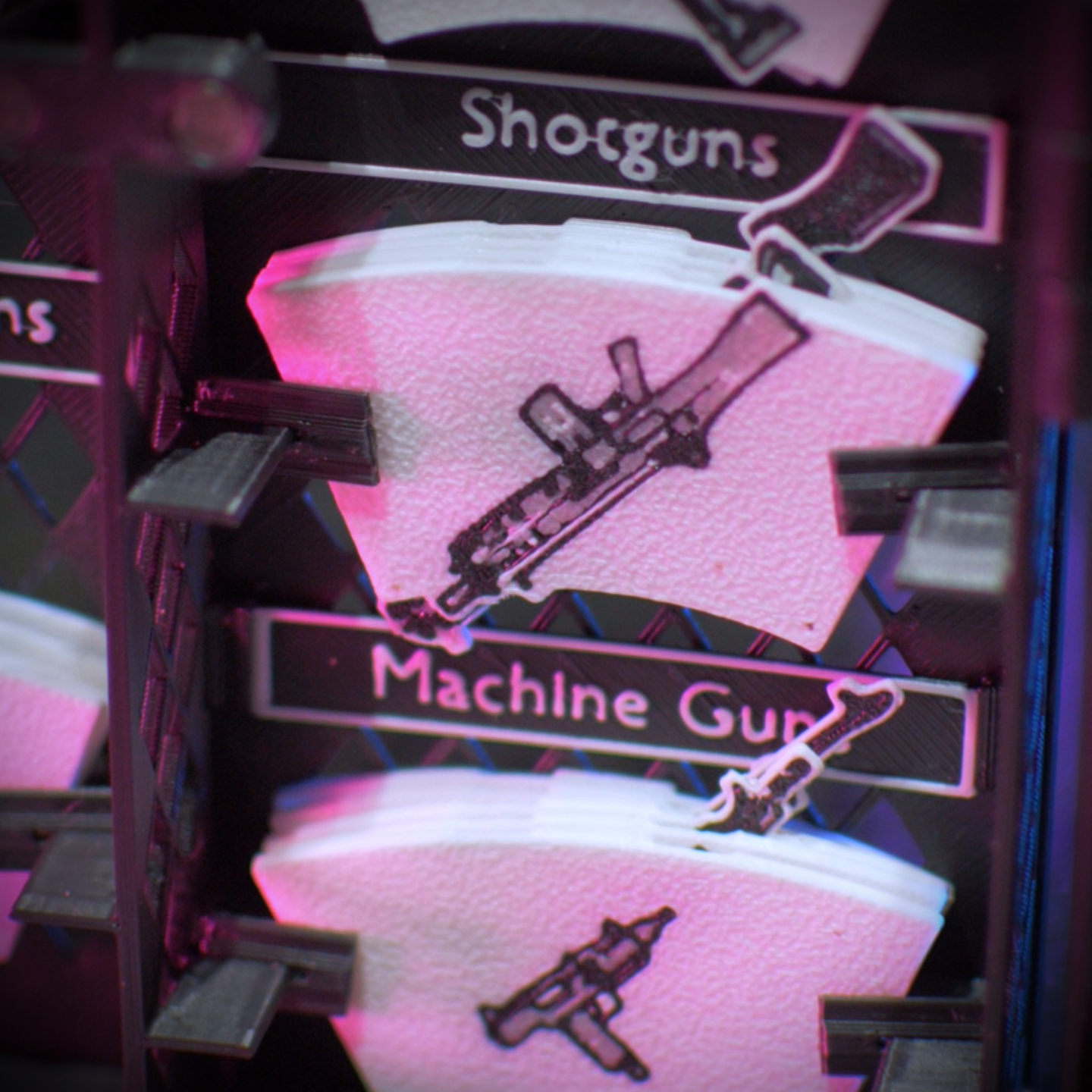

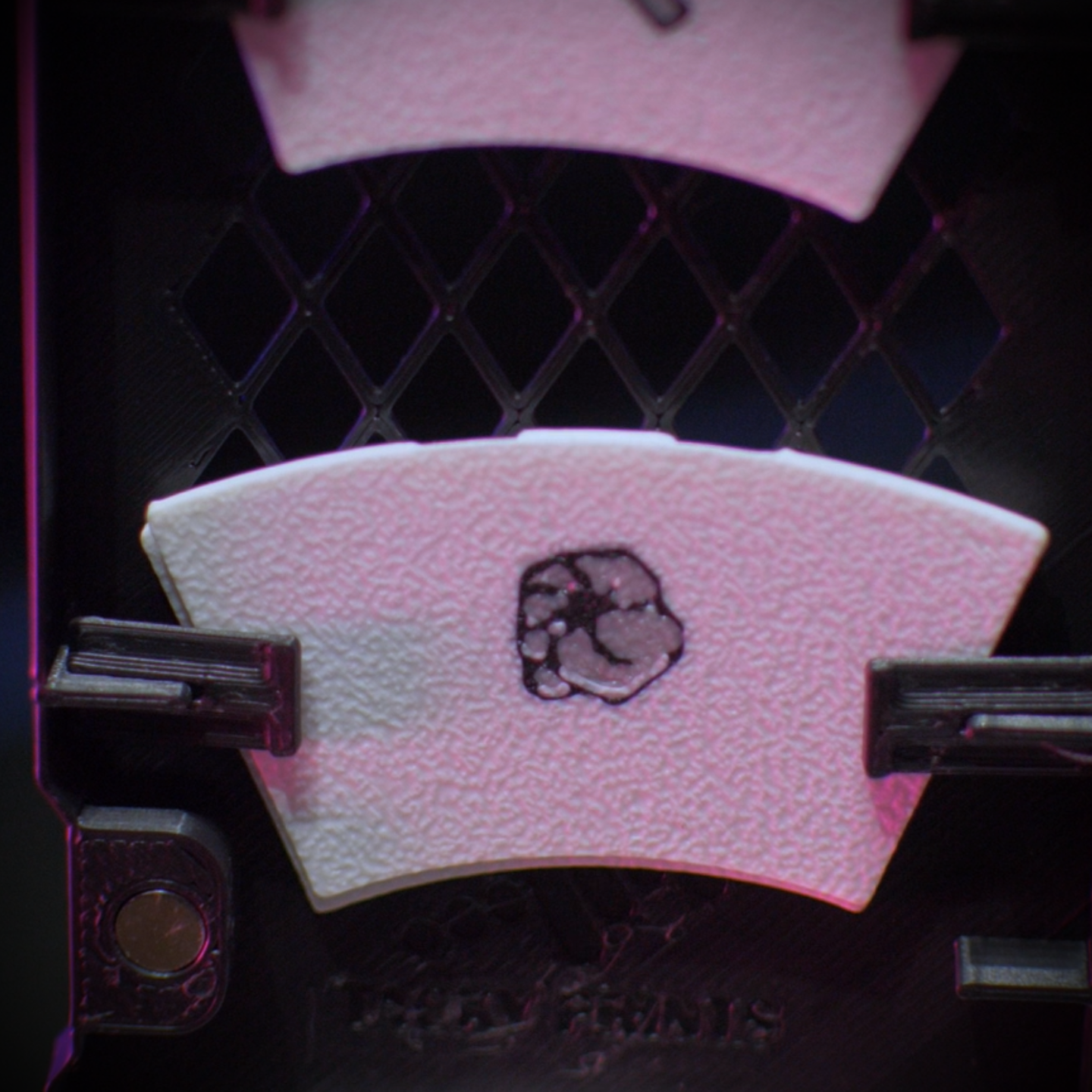

Slide the holder clips into the rack until they press firmly against the light inserts. These act as a physical lock to keep your custom weapon panels from rattling or falling out.

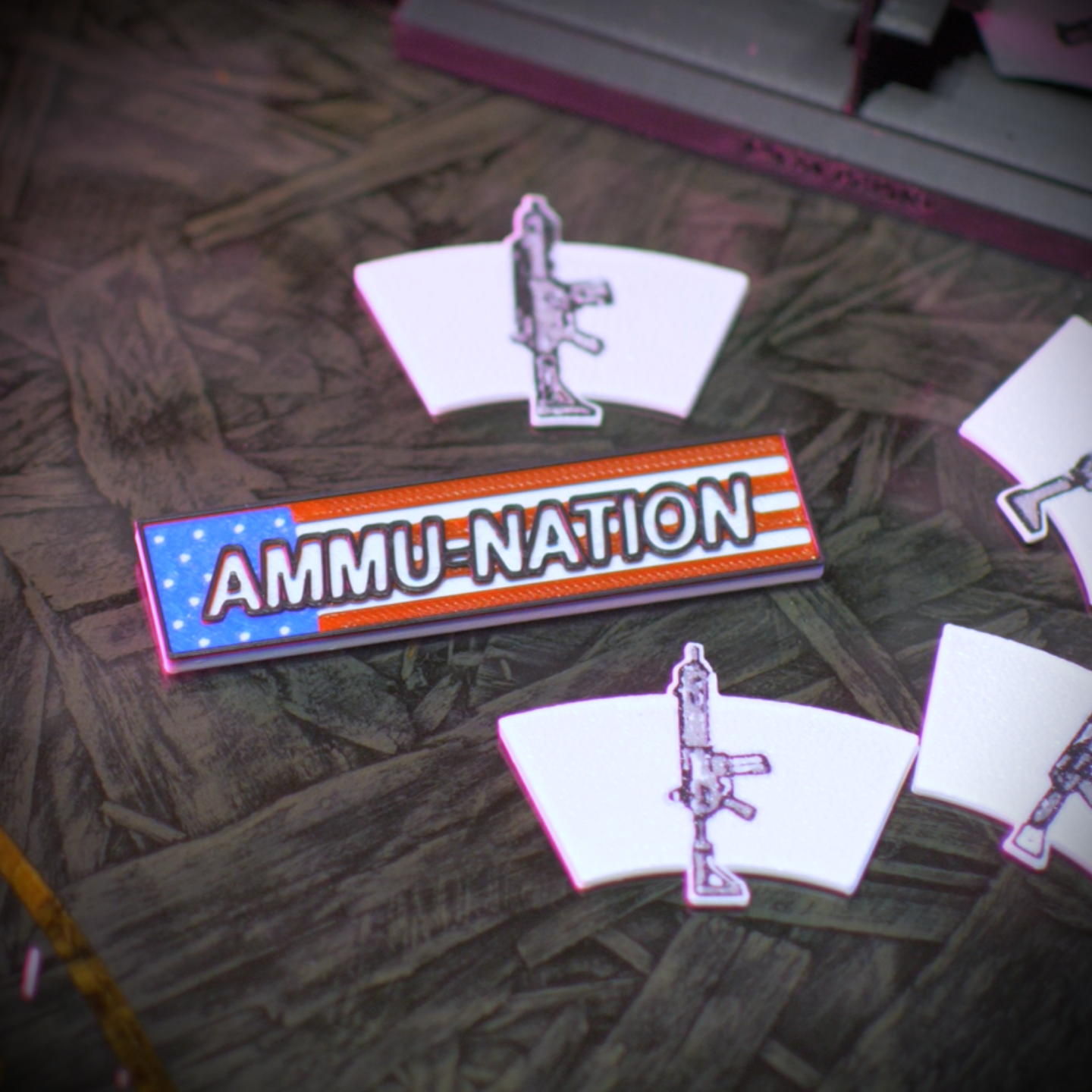

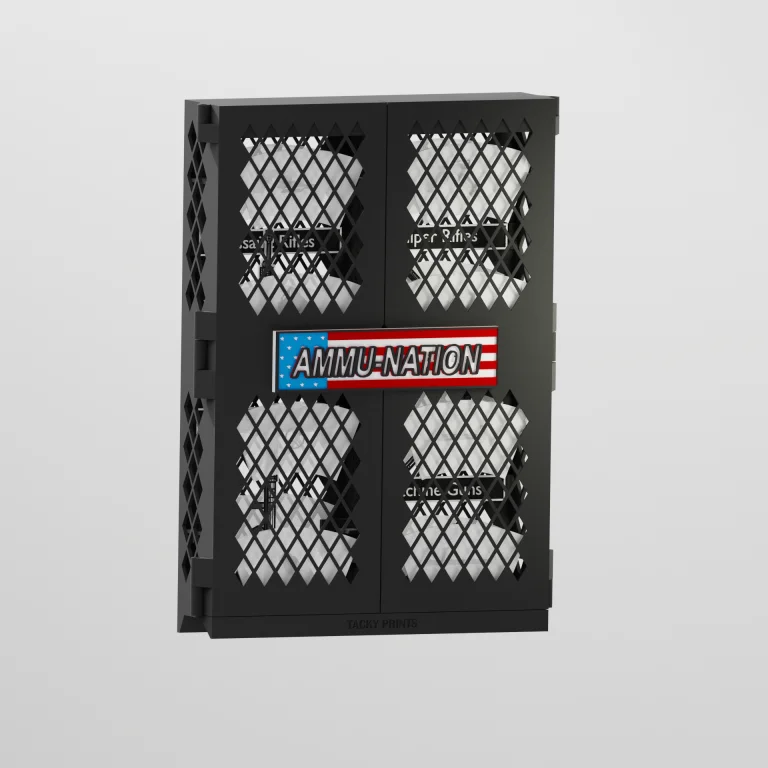

Magnetic Logo Plate

1. Glue magnets into the back of the outer **Logo Plate** matching the polarity of your doors.
2. This allows the logo plate to magnetically snap to the **Housing** when the doors are open, or snap directly to the **outside of the doors** when the organizer is closed!

Mount & Enjoy

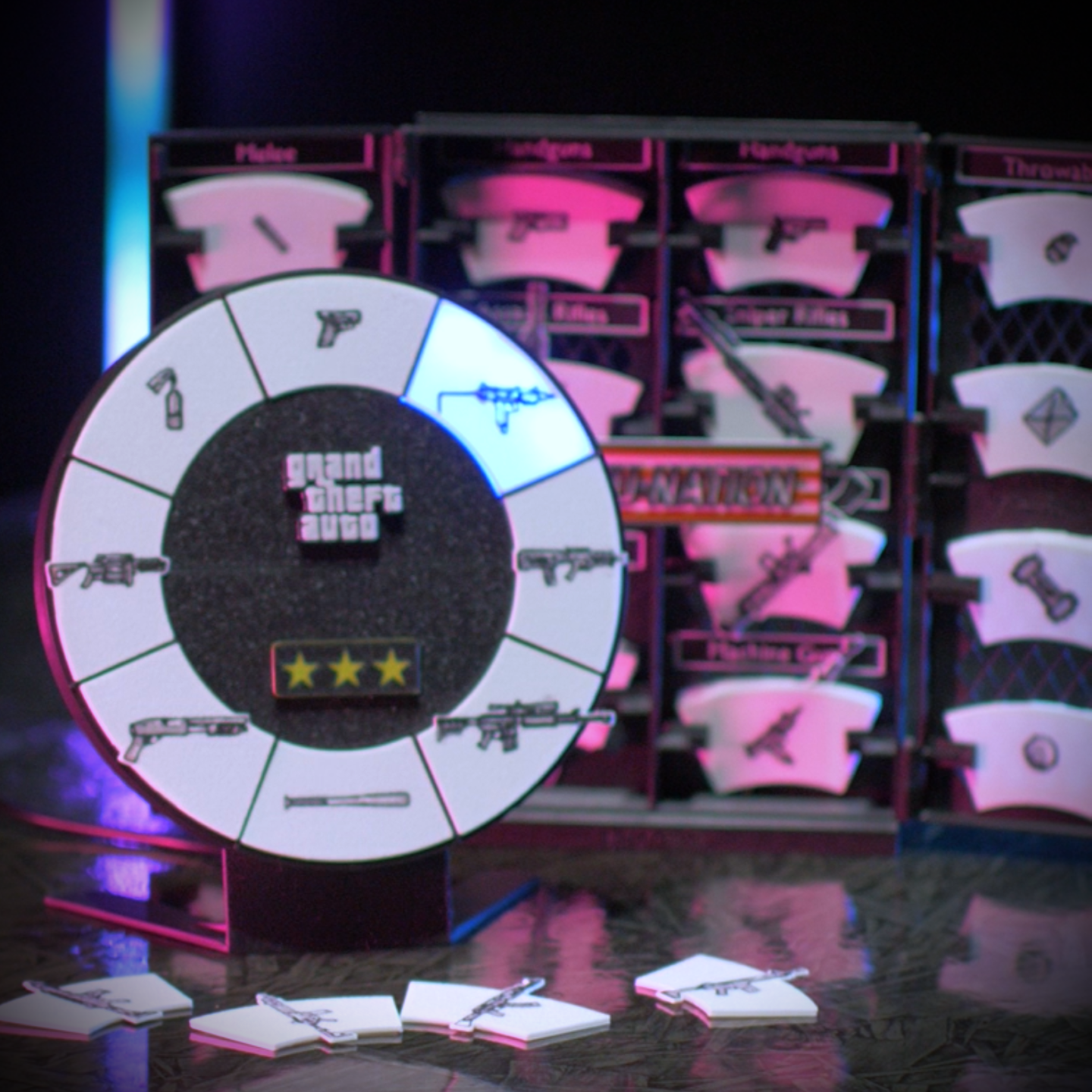

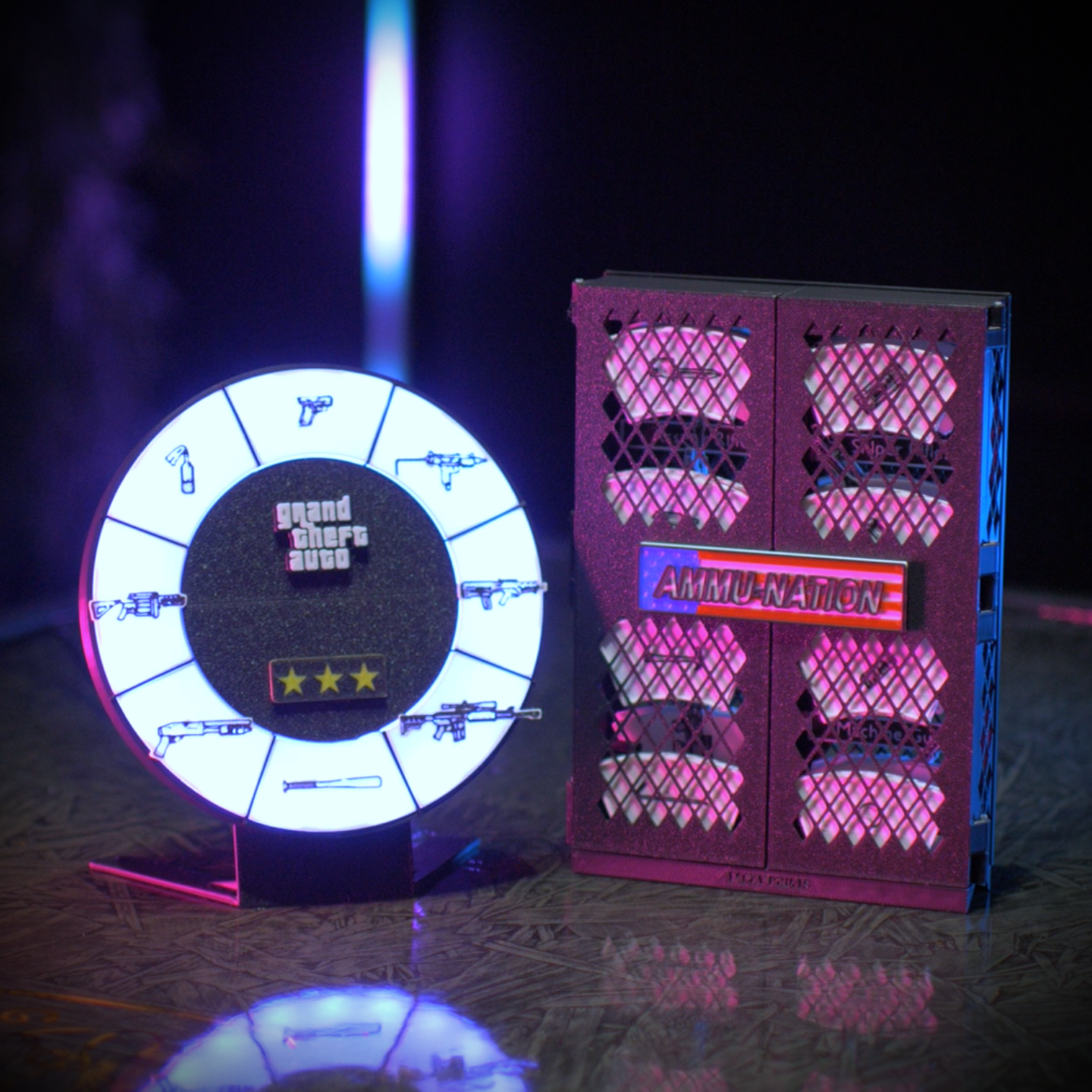

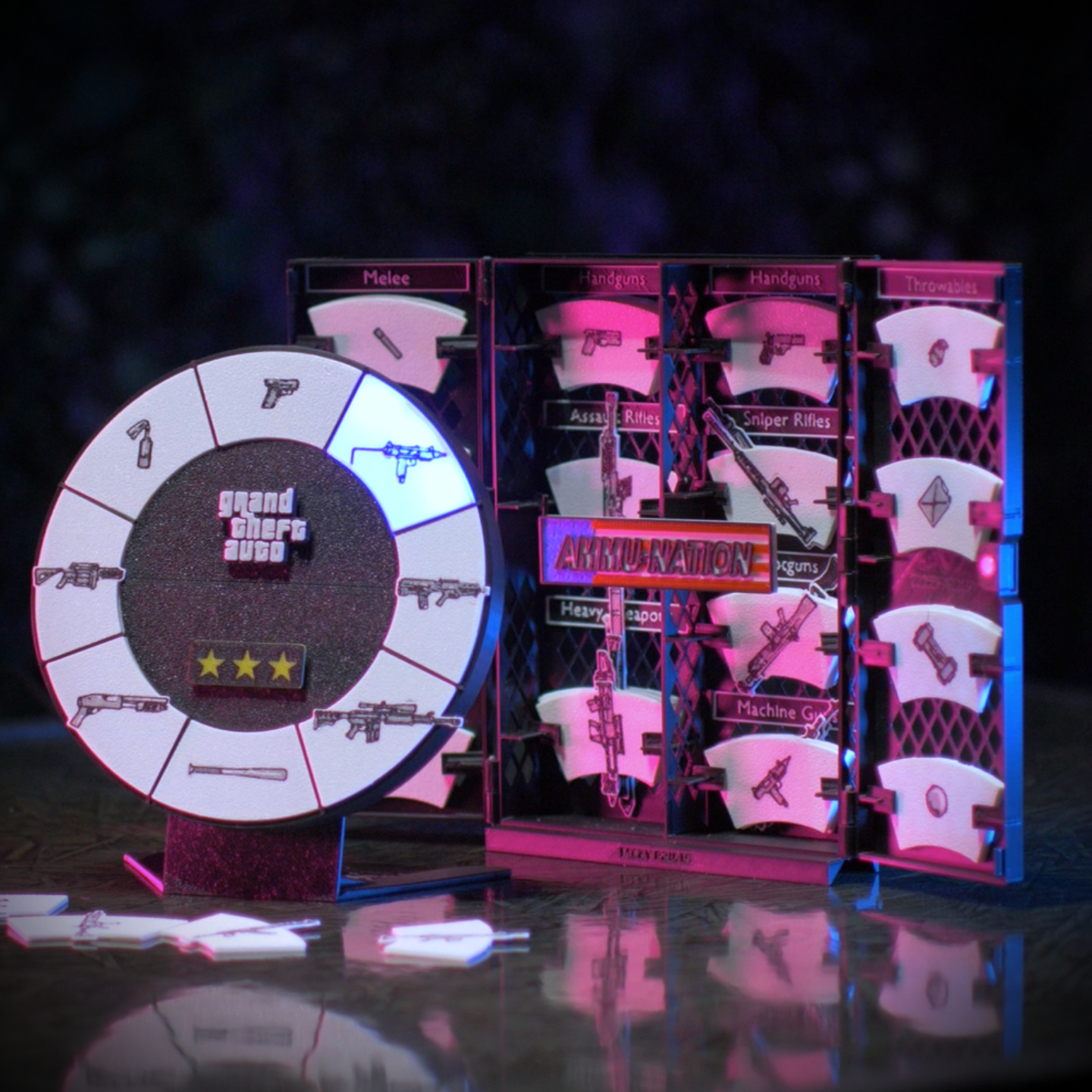

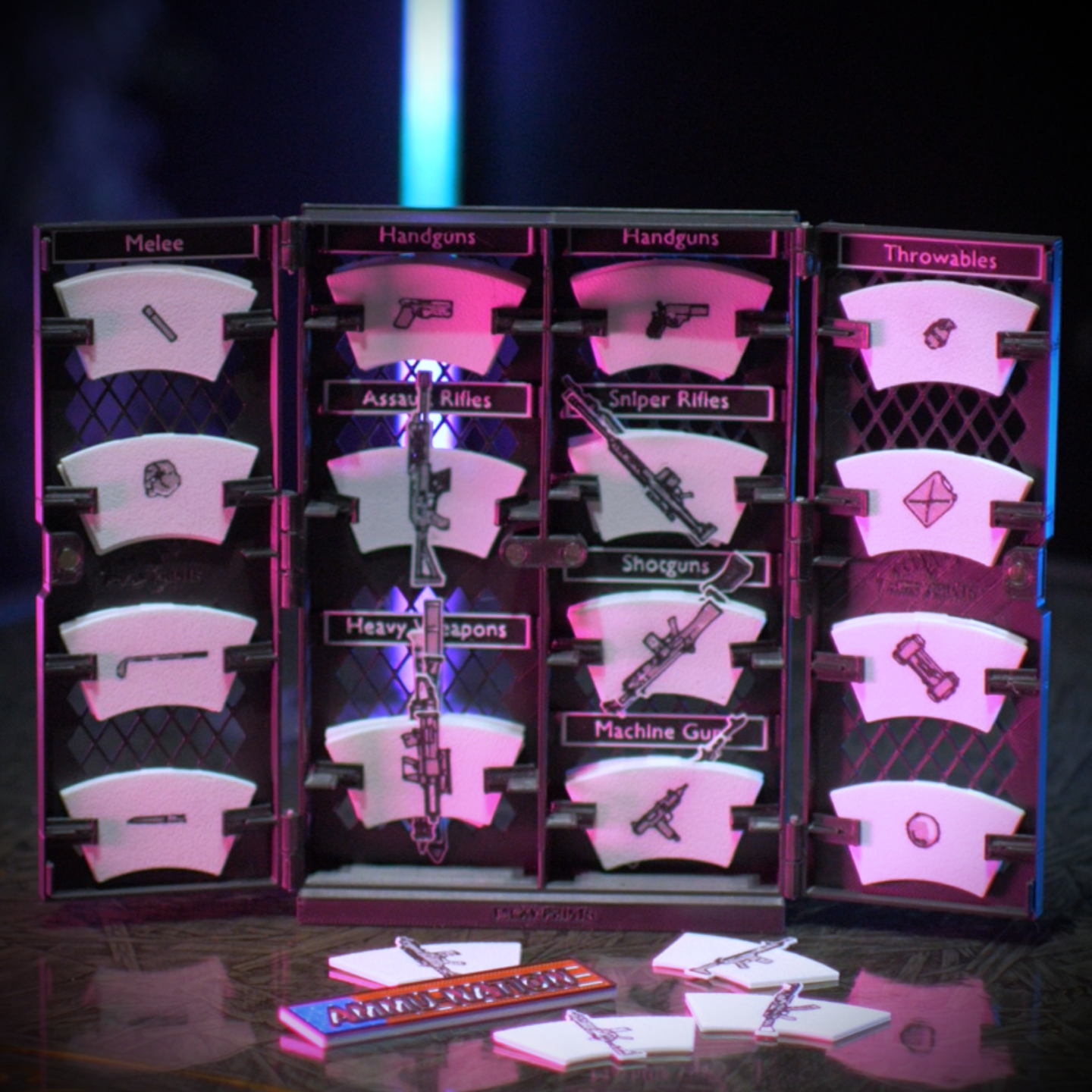

When paired with the GTA LED Wheel Lamp, this organizer gives you a clean, functional way to display and store all your interchangeable light panels.

If you built this set, please consider leaving a review, uploading a photo of your make on the download page, and tagging us on social media—we’d love to see your setup!

📝 Changelog

Keeping our designs current and addressing user feedback are priorities. This tab will track all official updates to the STL files found in this download.

Version V1.0

• Date: 8/24/2026

• Notes: Initial Release. Clean STL & 3MF files provided. Optimized for FDM. No hollowing needed, minimal support setup required.
